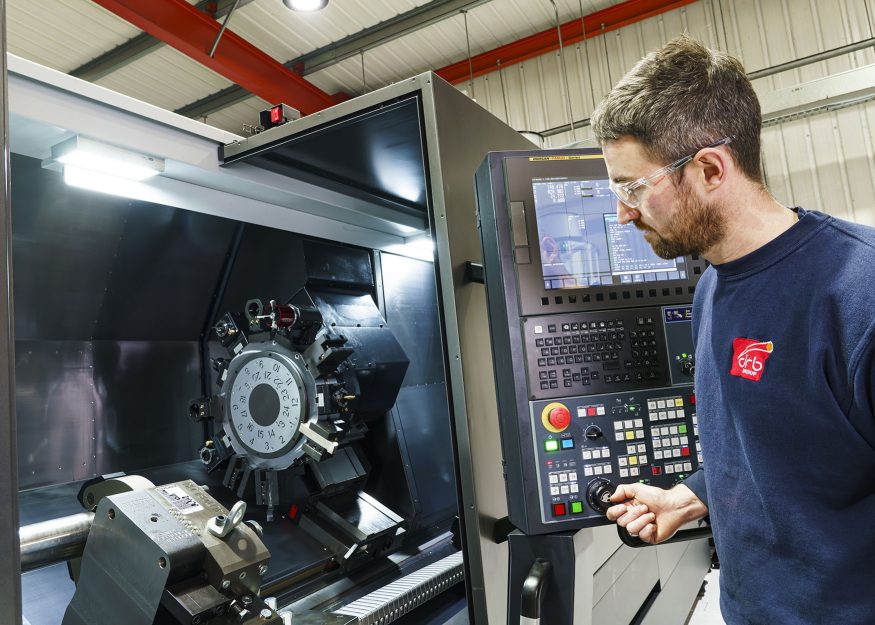

Representative machining cases
Detailed examples showing how drawings, samples and application requirements can be converted into a practical machining and inspection plan. These are representative capability cases—not customer-specific claims.
Common component challenges and the right engineering response
Each case focuses on the problem, planning logic, manufacturing route and inspection priority.
Replacement shaft from a worn sample
Challenge: Original drawing unavailable; bearing and coupling locations must still fit correctly.
Approach: Measure mating parts, identify unworn reference areas, establish functional datums and confirm material/heat condition.
Priority checks: Bearing seats, runout, shoulder locations, keyway and overall assembly length.
Milled fixture plate for repeat drilling
Challenge: Multiple holes must remain related to a stable locating reference.
Approach: Select datums, plan face preparation, produce hole pattern from one coordinate setup and add practical locating features.
Priority checks: Flatness, hole position, datum edge relationship and repeat clamping behaviour.
Bush and sleeve for a sliding assembly
Challenge: Smooth movement is needed without excessive clearance or seizure.
Approach: Confirm shaft size, operating environment, lubrication and material pairing before defining final bore.
Priority checks: Bore size, cylindricity, wall thickness, length and edge condition.
Flange with bolt-circle relationship
Challenge: Face, bore and bolt circle must align with the mating assembly.
Approach: Establish bore/face datums, machine turning features first, then control drilling from the same reference system.
Priority checks: Face runout, bore, flange thickness, pitch circle and hole size.
Machine bracket with alignment faces
Challenge: A fabricated or rough blank needs machined faces and holes to position another unit.
Approach: Stabilise the blank, choose a primary mounting face, sequence machining to reduce distortion and retain useful stock.
Priority checks: Face flatness, perpendicularity, hole spacing and mounting height.
Small-batch production component
Challenge: Repeat parts must remain consistent without making the setup unnecessarily expensive.
Approach: Separate critical and general dimensions, use simple repeatable workholding and approve the first part before the batch.
Priority checks: First-off dimensions, tool-wear features, batch sampling and part identification.
Every case begins with evidence
Drawing, sample, assembly photo and functional explanation reduce avoidable assumptions.
How a requirement is reviewed
Function
What does the component locate, rotate, seal, guide, clamp or support?
Reference
Which drawing, sample surfaces or mating parts provide reliable dimensional information?
Risk
Which dimensions can cause assembly failure, leakage, vibration, wear or misalignment?
Process
What setup, machine, tooling and inspection sequence controls those risks?
What a public case page should—and should not—show
| Can show | Should protect |
|---|---|
| General part family and machining process | Customer names, proprietary drawings and unique product geometry |
| Manufacturing challenge and quality logic | Commercial prices, confidential tolerances and production volumes |
| Material category and representative inspection points | Traceable serial data, application secrets and NDA information |
